From Fundamentals to Failure Analysis: A Comprehensive Guide to Rotating Machinery Shock and Vibration

Introduction

The integrity and performance of rotating machinery are foundational to modern industry, underpinning sectors from energy generation to aerospace, manufacturing, oil & gas, and transport. Despite the ubiquity and importance of machines such as turbines, pumps, compressors, engines, and generators, one of the most persistent challenges encountered throughout their operational lifespan is vibration and the associated phenomena of mechanical shock. In these complex systems, unmanaged vibration can reduce efficiency, accelerate mechanical wear, reduce lifespans, and, in worst-case scenarios, precipitate catastrophic failure with costly or even hazardous results.

The ongoing drive for higher efficiency, tighter tolerances, and higher rotational speeds magnifies the consequences of resonance, imbalance, and other vibratory effects. As such, the study and proactive management of shock and vibration in rotating equipment remains at the cutting edge of mechanical engineering, continually evolving from basic manual observation to sophisticated, AI-driven predictive maintenance regimes. Today, the discipline integrates classical vibration theory, advanced modal analysis, digital signal processing, machine learning, and cloud-based simulation, cementing itself as both a critical science and a practical necessity.

1. Physical Principles and Vibration Fundamentals

The behaviour of rotating machinery under vibratory loads is governed by universal principles of dynamics-these foundational laws are indispensable to both qualitative understanding and mathematical diagnosis.

Single Degree-of-Freedom System

At the core of vibration analysis lies the single degree-of-freedom (SDOF) spring-mass-damper system. This archetype, shown in Figure 1, models the dynamic response of a mass (m) supported by a spring of stiffness (k) and subjected to damping (c), as it is displaced (x(t)) under an external force (f(t)):

This forms a second-order differential equation, the solution of which depends on the nature of the force and system parameters. While free vibration occurs with initial disturbance and then no further force (e.g., shaft deflection released), forced vibration involves periodic or random excitation (e.g., unbalance, gear mesh). A system experiences resonance when the forcing frequency \(\omega\) coincides with \(\omega_n\), leading to potentially unbounded vibrations in the absence of damping-a core risk in rotating machinery.

Multi-Degree-of-Freedom Systems and Modal Analysis

Real rotating machinery-be it a turbine shaft, multi-stage pump, or complex gearbox-cannot be described by a single mass or point. Instead, it is modelled as a multi-degree-of-freedom (MDOF) system-a coupled set of masses and springs.

General form for an n-DOF undamped system:

Natural frequencies and mode shapes emerge from the eigenvalue problem:

Each mode can be thought of as a basic pattern in which the entire physical system prefers to vibrate; real oscillation is a superposition of these. The modal analysis uncouples complex equations, allowing each natural mode to be studied independently. For complex geometries, stiffness and mass matrices are built from the physical structure (using the finite element method), paving the way for computational solution.

While SDOF describes idealised behaviour, MDOF analysis is essential for accurate analysis and design in complex rotating machines.

Rotordynamics, Gyroscopic Effects and Stability

Rotordynamics focuses on the unique behaviour of rotating flexible shafts-where rotational inertia, gyroscopic forces, and support (bearing) dynamics interact. A spinning rotor, due to its angular momentum, exhibits phenomena absent from non-rotating systems. Gyroscopic Effect is the precessional motion of a spinning body, such as a rotor or flywheel. It shifts the natural frequencies, produces forward (same direction as spin) and backward (opposite) whirl modes, and can increase or decrease critical speeds depending on operational conditions

For a simple disk on a shaft (Jeffcott rotor), the gyroscopic effect alters the equation of motion:

A Campbell diagram plot represents a system's response spectrum as a function of its oscillation regime. Analysing the Campbell diagram reveals crossing points-so-called "critical speeds" essential for design and safe operation.

Nonlinearities and Transient Phenomena

Much of the above assumes linearity; real systems exhibit nonlinearities (e.g., bearing clearance, squeeze-film dampers, blade rubs), especially under shock or high amplitude conditions. Transient events-startup, rundown, shock loading, or blade failure-require time-domain simulation, typically using advanced finite element methods and explicit integration schemes.

A comprehensive dynamic model must capture:

• Damping Types: Viscous (linear), hysteretic, Coulomb (friction).
• Excitation Sources: Periodic (unbalance), random (turbulence), shock (transient overloads, blade loss).
• Energy Methods: Used in stability and fatigue analysis.

2. Sources and Symptoms in Rotating Machinery

Understanding why rotating machinery vibrates and how these vibrations manifest is crucial for effective diagnosis, risk assessment, and remediation.

Unbalance

Unbalance occurs when the mass distribution about the rotational axis is uneven, causing the centroid to be offset from the axis of rotation. Unbalance manifests in three primary forms: static unbalance occurs when the center of mass is offset while the rotational axis remains parallel; couple unbalance arises when opposing moments are created by mass distribution; and dynamic unbalance, the most common and complex type, involves neither aligned axes nor centered mass, requiring multi-plane correction. These imbalances typically originate from manufacturing defects, accumulated dirt/deposits, thermal distortion, material loss or build-up, eccentricity, and key-related imbalances.

Centrifugal force from unbalance:

Symptom: Vibration amplitudes at 1x running speed (1x RPM) dominate spectrally. If not corrected, a mass with its center of gravity offset from the shaft axis, rotating and creating a centrifugal force. The force induces high radial forces on bearings, leading to premature failure.

Misalignment

Misalignment occurs when coupled shafts' rotational axes are not collinear, manifesting in three potential configurations: angular misalignment where shaft axes intersect at an angle, parallel (offset) misalignment where axes run parallel but laterally displaced, or a combination of both. This condition generates a characteristic vibration signature with spectral peaks at 1x and 2x running speeds, induces high axial vibrations, and imposes excessive loads on couplings and bearings. Real-world cases show thermal growth in steam turbines induces progressive misalignment, detectable via cross-channel phase analysis (180° phase shift across couplings)

Bearing Defects

Bearings (rolling element and fluid-film types) are a primary source of vibration. Rolling element bearings generate distinctive vibration signatures when defects develop on rolling surfaces. Sleeve bearing failures in rotating machinery typically stem from oil film breakdown, overheating, wear, fatigue, or instability.

For rolling element bearing, the mathematical relationships governing these fault frequencies derive from the kinematics of rolling contact, with specific frequencies corresponding to defects on inner races, outer races, rolling elements, and cages. Understanding these relationships requires careful consideration of the bearing geometry, including pitch diameter, rolling element diameter, contact angle, and number of rolling elements.

Characteristic frequencies depend on bearing geometry and location of fault:

Rolling element defects create more complex vibration patterns because defective balls or rollers impact both races during each revolution of the cage. These faults produce high-frequency impulsive events, best detected with envelope or demodulation techniques. Lubrication issues, wear, or electrical discharges (in VFD-driven motors) also contribute distinct signatures

For plain (sleeve) bearing, oil film failure due to contamination, starvation, or viscosity loss causes metal-to-metal contact, overheating, and vibration at 1x–2x running speed. Overheating melts Babbitt layers, while abrasive wear from particles or adhesive scoring degrades surfaces. Fatigue cracks emerge from cyclic stresses, and oil whirl/whip induces sub-synchronous vibration (35–48% of rotor speed). Primary causes include lubricant issues, misalignment, contamination, and excessive loads. Mitigation requires strict lubrication management (filtration, viscosity control), precision alignment, optimised clearances, thermocouple monitoring, and vibration analysis per ISO 10816-7 standards to prevent metal damage and extend bearing life.

Fluid-Induced and Aerodynamic Vibrations

In pumps, compressors, turbines, and fans, pressure fluctuations within the working fluid drive critical vibrational phenomena: hydrodynamic instability (e.g., oil whirl/whip in journal bearings at 40–48% of shaft speed), cavitation-induced high-frequency shocks from vapour bubble collapse, and aerodynamic effects like blade-passing vibrations or flow separation. These fluid-induced instabilities—particularly detrimental in high-speed or high-load applications—generate destructive resonance, accelerate component fatigue, and can precipitate catastrophic failure even in robustly designed systems.

Shock and Transient Events

Shock refers to a sudden, transient excitation characterised by a rapid change in force, velocity, or displacement, often resulting from impacts or abrupt operational changes. Examples include drops, bangs or impacts which impart a short-duration force. The sudden events, such as rotor blade loss, coupling failure, or external impacts produce severe transient vibrations far exceeding steady-state amplitudes. These result in immediate risk to shafts, bearings, and casing integrity, and require Shock Response Spectra (SRS) or time-domain (transient) peak analysis, for incident reproduction and mitigation design.

3. Measurement Techniques and Diagnostic Tools

Sophisticated measurement and analysis techniques are the backbone of modern rotating machinery maintenance and diagnostics-accuracy in data capture is as essential as the underlying theory.

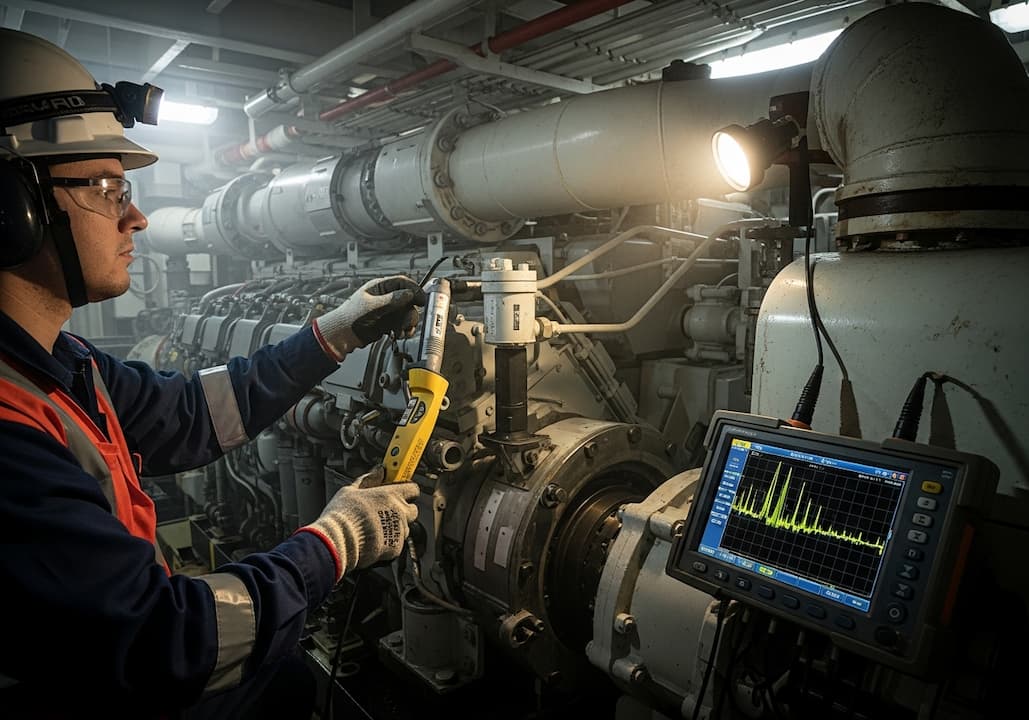

Sensor Types and Installation Practices

Main Sensor Types:

Test setup is critical. Sensors must be rigidly mounted (studded or glued) to capture true motion, and cables routed to minimise triboelectric noise. Before tests, accelerometers are calibrated on a reference shaker to verify sensitivity and phase.

Critical Factors:

• Frequency response
• Sensitivity
• Mounting method
• Environmental compatibility (temperature, contamination)
• Cable shield/grounding to avoid noise

Data Acquisition and Processing

Measurement Steps:

1. Baseline Recording: Capture vibration signatures under normal operating conditions.
2. Signal Acquisition: Use high-resolution DAQ (e.g., 24-bit, >20 kHz sampling) synchronised to machine control signals.
3. Phase Reference: Install tacho probes to synchronise vibration and rotational speed for order tracking.

Diagnostic Tools

Fast Fourier Transform (FFT) Analysis

Transforms time-domain data into frequency domain, enabling identification of resonance, unbalance, misalignment, and bearing/generation-related frequencies. FFT provides a clear spectral view, delineating fault signatures over a wide frequency range efficiently.

Order Tracking

Essential for variable speed machines, order tracking aligns vibration data to shaft rotation for clear identification of periodic events (e.g., gear mesh, blade passing frequencies) regardless of speed variations.

Envelope Detection

Used to identify high-frequency, low-amplitude modulated signals indicative of incipient bearing defects. It demodulates the vibration waveform to reveal characteristic impacts masked in the raw signal.

Time-Synchronous Averaging (TSA)

Averaging the vibration signal synchronised to a specific rotational reference, TSA filters out non-synchronous noise and enhances defect detection.

Modal and Orbit Analysis

Modal analysis evaluates system modes using experimental or computational approaches; orbit plots visualise the shaft's actual path within a bearing, diagnosing instability and oil-film effects.

Measurement Standards

International standards set vibration acceptance criteria for machinery health assessment:

• ISO 21940-11: establishes procedures and unbalance tolerances for balancing rotors with rigid behaviour.
• ISO 20816-1: is for measurement and evaluation of vibration using measurements made on rotating, non-rotating and non-reciprocating parts of complete machines.
• ISO 4866: establishes principles for carrying out vibration measurement and processing data with regard to evaluating vibration effects on structures.
• MIL-STD-810: United States military test standard specifies environmental tests, including shock and vibration, to determine whether equipment is suitably designed to survive the designated conditions.

Vibration velocity (mm/s RMS) remains the most common acceptance parameter. Condition monitoring compares current readings to baseline/reference and standard limits to track deterioration.

4. Failure Analysis and Mitigation Strategies

Failure analysis is vital both to retrospectively explain breakdowns and, more importantly, to inform mitigation, prevention, and repair strategies. Effective machinery vibration diagnosis requires systematic methodologies that guide the analyst through logical sequences of measurements and observations to identify root causes efficiently.

Typical Failure Modes and Causes

Mitigation Strategies

Key Approaches:

1. Dynamic Balancing:
   • Corrects mass distribution in-situ, reduces unbalance forces, and is performed in single or multiple planes.
   • ISO 21940-11 defines balance quality grades (G codes) depending on application criticality (G2.5 for turbines/fans, G6.3 for general machinery).
2. Alignment:
   • Careful shaft and coupling alignment critical; laser tools enable high-precision correction.
3. Damping & Isolation:
   • Installation of elastomeric or spring isolators, squeeze-film dampers, or tuned mass dampers absorbs and dissipates vibration energy.
   • Foundation and support modifications can also mitigate structure-borne vibration.
4. Structural Modification:
   • Stiffening weak frames, reinforcing foundations, or adding bracing reduces susceptibility to resonance. Finite element simulations help optimize such changes cost-effectively.
5. Bearing Upgrades:
   • Replacing plain bearings with tilting pad or elliptical bearings increases stability.
   • Lubricant selection and regime (e.g., oil viscosity) alter film stability and must match operational conditions.
6. Operational Adjustments:
   • Avoid machine operation within known resonance bands (e.g., controlled run-up/ramp-down speeds)
   • Adjusting process parameters to stay clear of critical speeds or fluid-induced instabilities.
7. Predictive Maintenance:
   • Online condition monitoring, regular data trending, and integration with CMMS tools result in reduced downtime and optimised repair planning.

5. Condition Monitoring, Predictive Maintenance, and Simulation Tools

Trend analysis forms the foundation of condition-based monitoring by tracking vibration parameters over extended periods to identify gradual degradation patterns that precede failure. Proactive maintenance hinges on the ability to monitor vibrational health reliably and intervene before damage escalates.

Condition Monitoring Approaches

• Reliability-Centred Maintenance (RCM): Focuses resources on critical assets, balancing predictive, preventive, and reactive measures.
• Condition-Based Monitoring (CBM): Uses real-time data to schedule maintenance, relying on vibration and process parameter trends, rather than fixed intervals.
• Predictive Maintenance (PdM): Employs advanced diagnostics, pattern recognition, and machine learning to prognose impending failures.

Trend Monitoring: Alarms and action thresholds are set based on ISO standards, OEM data, or statistical baseline deviation. Trending peaks, RMS, or crest factor identifies wear progression.

Emerging Role of AI, IoT, and Digital Twins

The convergence of Industrial IoT, machine learning and AI are revolutionising the interpretation of vast data volumes from modern vibration monitoring systems:

• Anomaly Detection: Models trained on healthy data can flag deviations, even for previously unseen faults. Unsupervised learning algorithms excel at anomaly detection.
• Fault Classification & Prognostics: AI models (CNNs, SVMs, transformers) classify complex vibration signatures and predict remaining useful life (RUL) of machinery.
• Edge Computing: Embedded, low-power devices enable real-time monitoring and diagnostics at the asset level. Next-gen wireless MEMS arrays with edge processing could localise bearing faults within 15 cm, slashing data latency.
• Digital Twins: Virtual replicas simulate machinery behaviour, allowing "what-if" failure and maintenance scenarios, design optimisation, and virtual sensor fusion for robust remote monitoring.

Simulation Tools

Industry-standard software platforms (e.g., B&K PULSE Reflex, Siemens Simcenter Testlab, OROS, LabVIEW with specialised toolkits, MATLAB with Signal Processing Toolbox) integrate data acquisition, visualisation, and advanced analysis capabilities.

• Finite Element Analysis (FEA): Modal, harmonic, transient, and forced response simulations model real-world scenarios for design and troubleshooting. Finite element analysis (FEA), including modal analysis, rotor dynamic, unbalance response analysis, has revolutionised the design and analysis of rotating machinery by enabling detailed prediction of dynamic behaviour before physical prototypes are constructed. The mathematical foundation involves discretising the continuous rotor system into finite elements connected at nodes, with each element's dynamic characteristics described by mass, stiffness, and damping matrices that capture the local dynamic behaviour.
• Order and Waterfall Plots: Visualise frequency content across speed ramps or changing operational conditions. When vibration characteristics change with speed or time, spectrograms or waterfall plots visualise how spectral content evolves. It is crucial for machines running at variable speeds or under transient conditions. In variable-speed machines, rotating speed-varying harmonics (“orders”) are analysed in a synchronous angle domain to separate speed-dependent peaks from fixed-frequency ones.
• Campbell Diagrams: Essential for visualising critical speed crossings and safe operating envelope. Simulation enables safe design, virtual troubleshooting, and validation of diagnostic algorithms before physical deployment.

Simulation tools enable calculations of spectral peaks, isolation of frequency bands, envelope demodulation, and reporting of alarm spectra against standards. Engineers often validate software results by cross-referencing with manual calculations or multiple software platforms.

6. Future Directions and Concluding Remarks

Effective management of shock and vibration is indispensable for ensuring product integrity, safety, and performance across industries. By leveraging fundamental principles, precise measurement methods, advanced analytical techniques, and lessons from real-world applications, engineers can address these challenges comprehensively. As the field continues to evolve, several trends and challenges will shape the future of rotating machinery shock and vibration analysis.

Emerging vibration analysis trends include AI-augmented diagnostics, digital twins for real-time simulation, wireless MEMS sensors with edge processing, and unified data ecosystems integrating multi source inputs. Standardisation (ISO/API) enables scalable AI training. Key challenges persist: sensor reliability demands precise installation, complex transients (e.g., blade-out events) challenge models, AI requires trust-building interfaces, and skilled human oversight remains essential despite technological advances.

The shock and vibration design, analysis and troubleshooting are not just an operational obligation. It is a strategic advantage when approached with expertise and ingenuity. Our commitment to technical excellence, industry compliance, and continuous innovation sets us apart. We empower clients to make data-driven decisions that extend machinery life, enhance safety, and optimise total cost of ownership.
